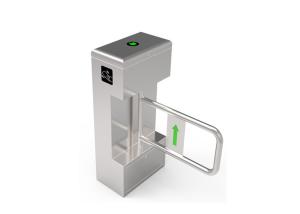

PEDESTRIAN ONE WAY SWING GATE
swing barrier is a good solution for access control. Access can be controlled optionally. Barrier will open when it
receives signal of control system or remote control. And in-built alarm system will activate if an unauthorized person
tries to tail people or enter from the opposite direction. If people do not pass the barrier in time aſter get authorization,
barrier will close and reset.
As a high-performance security swing barrier turnstile gate, it can be used in many places by virtue of its many
advantages. It is widely applied to bus stations, ports, neighborhoods, hotels, clubs, and companies that want to carry
out intelligent management on passage. Material of Mild steel/SS304/SS316 are available. It is a small size which can
save space.
BASIC SPECIFICATIONS
Size: 420 * 330 * 980 mm
Max arm length: 800 mm
Passing speed: 30 person/min
Power supply: 110 V/220 V ;50/60 Hz
Driving Consumption: 40 W
In Gate Open Signal: Dry Contact/ Relay
Driving Motor: 24 V
Security turnstile gate Weight: 30 kg/pcs
MAIN FUNCTION AND FEATURES
1. Can integrate with access control system.
2. Trigger to open by dry contact. Automatic close back after auto timer elapsed. Delay time can be programmed on
swing barrier control panel.
3. Trigger to open by dry contact (NC) and close by dry contact (NO). This allowed access control reader to control
swing barrier opening and closing time.
4. During power failure, swing barrier will automatically open up to allow free access. When power resume, swing
barrier will automatically close back to resume security level.
5. Built in clutch that will automatically disengage motor drive from gearbox when the gate is obstructed. Clutch release
reduce impact force to minimum in the event that gate closed onto passing users. This also protect the motor and control
panel from being damaged due to overload.
6. Optional safety IR beam can be added to auto reverse the gate upon detecting obstacle in the passage way.
This way the gate is reversed before even hitting user that is still in the passage way. More safety to the user.
7. Gate length can be easily customized to fit site requirement.
8. Auto synchronized opening when 2 swing barriers are installed for the same passage. Both side will open and close
at the same time.
9. Gate motor mechanism is self lock at open and close position.
10. Support bi-directional opening
TECHNICIAL PARAMETERS
| Description | Parameters |
| Lane Width | Max. 800mm |
| IP | IP54 |
| Pass Speed | 30 persons/min |
| Power supply | AC220V/110V,50/60Hz |
| Drive Mode | Motor drive |
| Power Consumption | 40W |
| Opening time | 0.3S |
| Humidity | ≤90% coagulation free |
| Noise | ≤50dB |
| Service Life | 5,000,000 cycles |
| Carton package size | 45x36x105cm |
| Working Environment | -20°C~+60°C |
| Gross Weight | 30KGS |
Our service
- Free visit to our factory.
- Reply your inquiry in 24 working hours.
- Professional staff answer your questions in English.
- Customized design is available,we can accept OEM & ODM.
- Unique problems can be made solution by our professional engineers.
- Special discount and protection of our distributors or agents in their area.
