Auto Recognition Security Access Control Supermarket 304 Stainless Speed Pass Turnstile
Product description

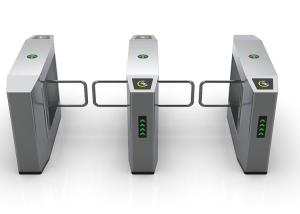

This swing barrier can support multiple verification methods, including RFID, fingerprint, QR code, palm verification
and visible light facial recognition. Especially, palm verification and visible light facial recognition can realize touchless
entrance control that avoids hands exposing to bacteria and boost public hygienic security.
MAIN FUNCTIONS AND FEATURES
1. working method can be set by the buttons on the main panel
2. Anti-pinch, anti-collision. If there is block during return of gate, motor stops working automatically. Reset
again after a default delay, the force 2Kg.
3.Anti-illegal in, anti-intrusion, auto close for reverse direction.
4. Anti-collision, gate closes when no valid signal is given.
5. Protection functions for gate, gate open to prevent motor from being damaged if there is outer force
collision.
6. Gates can be synchronous
7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable),
default time is 10s.
8. Reset function by photocells
9. Anti-pinch function by photocells
10.Compatible with Access control system, consumption system, ESD system, E-ticket system and so on.
11. One way or two way control
12. Unit can be controlled and administered by remote control
13. Led lamp indicator
Extensible functions:
1. LED counter display 2
2. Casing and gate size can be lengthened
3.Logic judgment by photocells (8 pair or 10 pairs)
4. Speech reminder
5.normal close or normal open adjustable
6. Light, sound alarm
PRODUCT SPECIFICATIONS
|
Description
|
Specification
|
| Channel width |
600mm (default) |
| Arm lenght |
530mm (default) |
|
Access device input voltage
|
Dry contact or 12V electrical level signal
or > 100ms 12V impulse signal, driving current > 10mA
|
|
Motor voltage
|
DC 24V (brush motor)
|
|
Max flow rate
|
30 person per minute
|
|
Gate swing angle
|
180 degree
|
|
Gate opening speed
|
1s
|
|
Reset time when power on
|
3s
|
|
Working temperature
|
-20°C~60°C
|
| Package |
Wooden box |
Application:
Intelligent Vertical Swing Turnstile ---can be compatible with IC card , ID card ,barcode card , fingerprint reading
card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access
of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent
community , enterprises and institution that need intelligent access management.
FQA
Q1. How about some special design?
That’s our advantage of design new gate or barrier according to your real situation to make different size,
software and features.Video call available during design and communicate in time during this procedure.
Q2.Do you have agency for after-sales service?
Any question about delivery goods, you could find our sales anytime. For installation, we will offer instruction
video to help and if you face any technical question, welcome to contact with us to have a face time to solve it.
Q3.What time do you need to delivery?
Commonly to say, 5-7 working days after payment could delivery for common orders, but it depends the order
quantity. We could talk about this question before final payment.
