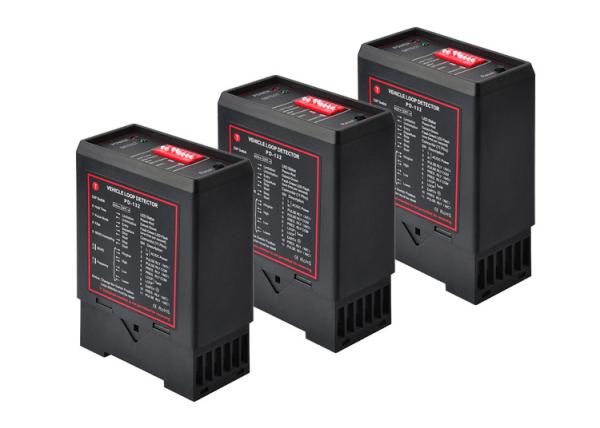

Industrial Engineering Design Strong Anti-Jamming Ability And Stability Vehicle Anti-Crash Loop Detector
Application scope
♦ Parking lot entrances vehicle detection
♦ Parking lot space information acquisition system
♦ Electronic police traffic lights snap shot system
♦ Traffic monitoring system
Main Features:
♦ Industrial engineering design concept
♦ Standard industrial guide installation
♦ Strong anti-jamming ability and stability
♦ Variety of output interface adapted to different scene
♦ Variety of shape choice meet differentiation demand
♦ High temperature stability
♦ Environment drift automatic compensation function
♦ Coil automatic fault detection function
♦ When the DIP switch is on position or changing the presence output time, Self-detection would be done
♦ ABS align to the pillar which can combine with each other compactly
♦ Presence output time can be adjustable
♦ Work mode can be set by the DIP switch
♦ Pulse output or permanent output can be adjustable
Work Indicator
Detector will enter into the self-calibration condition with the green LED flash, red LED extinguish once on power,
this procession will last 1 second. .the vehicle should not on the loops within the self-calibration. The green LED
will not flash, he red LED extinguish after self-calibration. When the vehicle past over the loop ,the red LED on.
DIP SWITCH and Wire Jumper
DIP1, 2 setting the sensitivity;set the presence output time of relay 1 by DIP3;set the relay2 as presence/pulse
output by DIP4; the output time of presence signal set by DIP5;DIP6set the frequency; jumper wire connect to
the open end, PIN16 connect to the NO of relay 1. Jumper wire connect to the close end, PIN16 connect to the NC of relay 1.
Work Frequency
User can change the loop's work frequency which can avoid the cross talk by the adjacent loop or environment frequency.
It offers two styles frequency, set by DIP6
Sensitivity Adjustable
The DIP1,DIP2 on the front panel can adjust the sensitivity. If the vehicle has not any response when test it, the sensitivity
should be improved.
Technical parameters of Loop Detector
| Power supply |
230V AC 115V AC 24V DC/AC 12V DC/AC |
| Frequency range |
20KHz ~ 170KHz |
| Sensitivity |
Adjustable in 4 increments |
| Reaction time |
10ms |
| Channel |
Single |
| Operating temperature |
-40ºC ~ +80º |
| Relative humidity |
<90% |
| Environmental compensation |
Automatic drift compensation |
| Output mode |
electric relay |
| Loop inductance |
Ideal is 100μH to 300μH(Connection included) |
| Size of Housing |
78x40x108 mm (L x W x H) |
Packaging & Shipping
Packaging:Standard Exported Carton/Wooden Package,customized packing is available too,as your wish!
Shipping:Usually 48 Hours After Payment.
